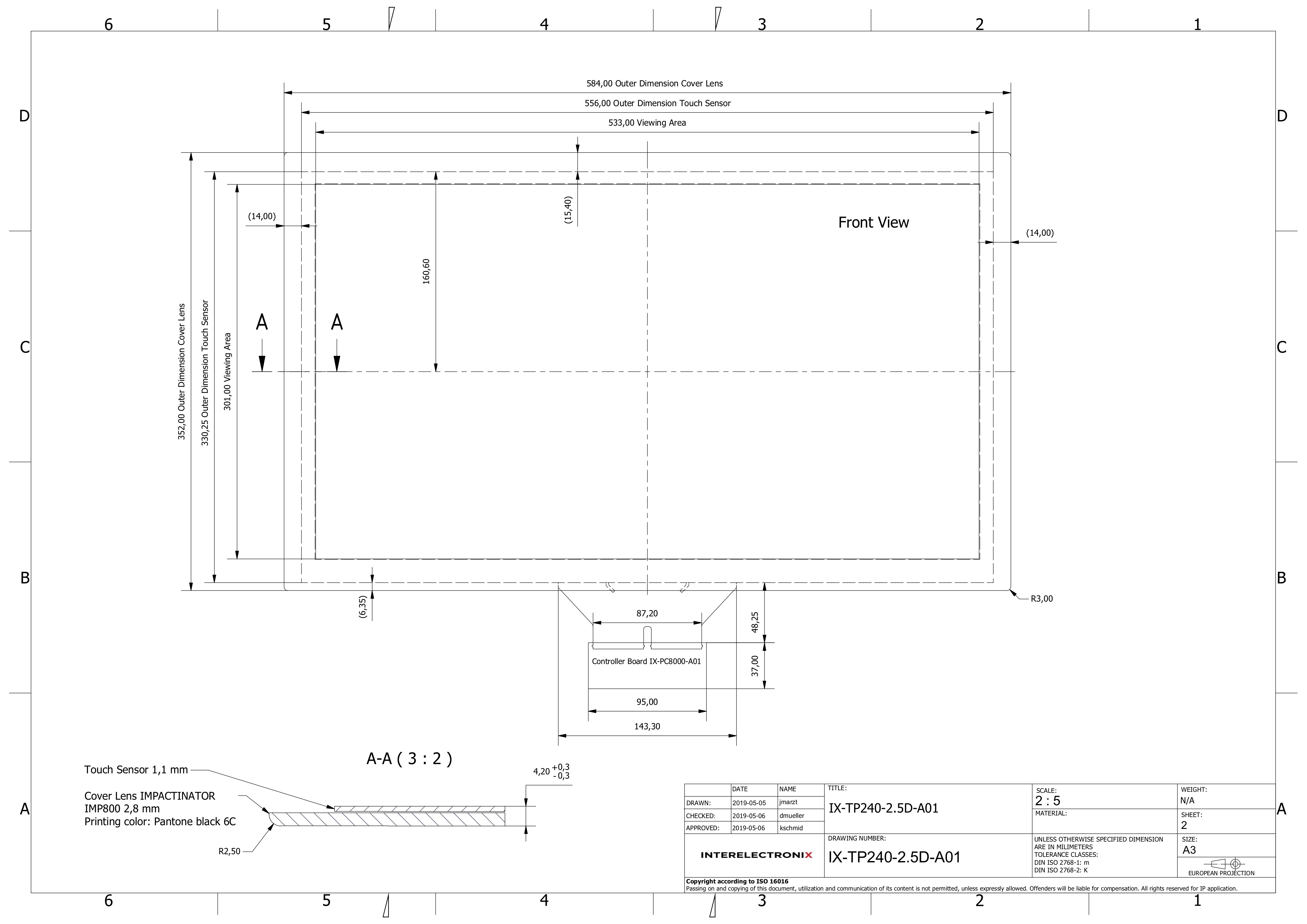

| Description | Dimension |
| Aspect ratio |
16:9
|
| Total height |
352.0 mm
|
| Total width |
584.0 mm
|
| Visible area height |
301.0 mm
|
| Visible area width |
533.0 mm
|
| Total thickness |
4.2 mm
|
| Glass thickness |
2.8 mm
|
| Glass type |
Impactinator 800
|
| Cable outlet direction |
180°
|
| Cable outlet length |
48.25mm
|
| Laminate |
no
|
| Controller type |
COB
|
Our stock range of standard PCAP touch screens from 7" to 55". For particularly high demands in terms of impact resistance, we offer you our very robust IK10 touch screen. High-quality industrial PCAP touch from the specialists at attractive prices.
Custom touch screens based on industry proven solutions. We offer ready-made solutions with details that can easily be modified to your specifications. You reduce your total cost of ownership and drastically shorten your R&D cycle time.
Learn about the different types of hardened glass. The advantages and disadvantages of the different glass hardening techniques and unique properties of our chemically hardened IMPACTINATOR® glass. Compressed specialised knowledge regarding the topic of hardened glass.
We achieve the reliable IK10 requirement impact resistance with our IMPACTINATOR glass even without a laminated glass construction. For the bullet impact test according to EN/IEC 62262, we achieve values of more than 40 joules for the central impact on 2.8 mm thin glass and exceed the requirements of the EN 60068-2-75 standard by more than 100%.
Our range of technical glass covers simple sturdy printed glass as well as high quality technical glass assemblies with optical laminated filters and precision coatings. Our manufacturing and prototyping processes are optimised for high flexibility and cost efficiency.
