libgpiod

tools for interacting with Linux GPIO device

libgpiod in Yocto

Include libgpiod in Yocto

Since Linux 4.8 the GPIO sysfs interface is deprecated. User space should use the character device instead. The libgpiod library encapsulates the ioctl calls and data structures behind a straightforward API.

You can use libgpiod in your embedded system with the Yocto project.

Find pieces of information here:

libgpiod yocto

libpgiod implementation in yocto

Include the libgpiod and dependent libraries into your image with the following setting:

IMAGE_INSTALL:append = " libgpiod libgpiod-dev libgpiod-tools"

testing libgpiod

Some commands to test libgpiod

Log in to your custom embedded system or connect via SSH.

Now you can use the libgpiod commands and see whether the implementation was successful.

Report gpio banks

First of all, you can detect how many gpio banks are installed. Use the following command:

gpiodetect

The output should look like this:

gpiochip0 [gpio0] (32 lines)
gpiochip1 [gpio1] (32 lines)
gpiochip2 [gpio2] (32 lines)
gpiochip3 [gpio3] (32 lines)
gpiochip4 [gpio4] (32 lines)

Get all settings

To get all settings, use the following command:

gpioinfo

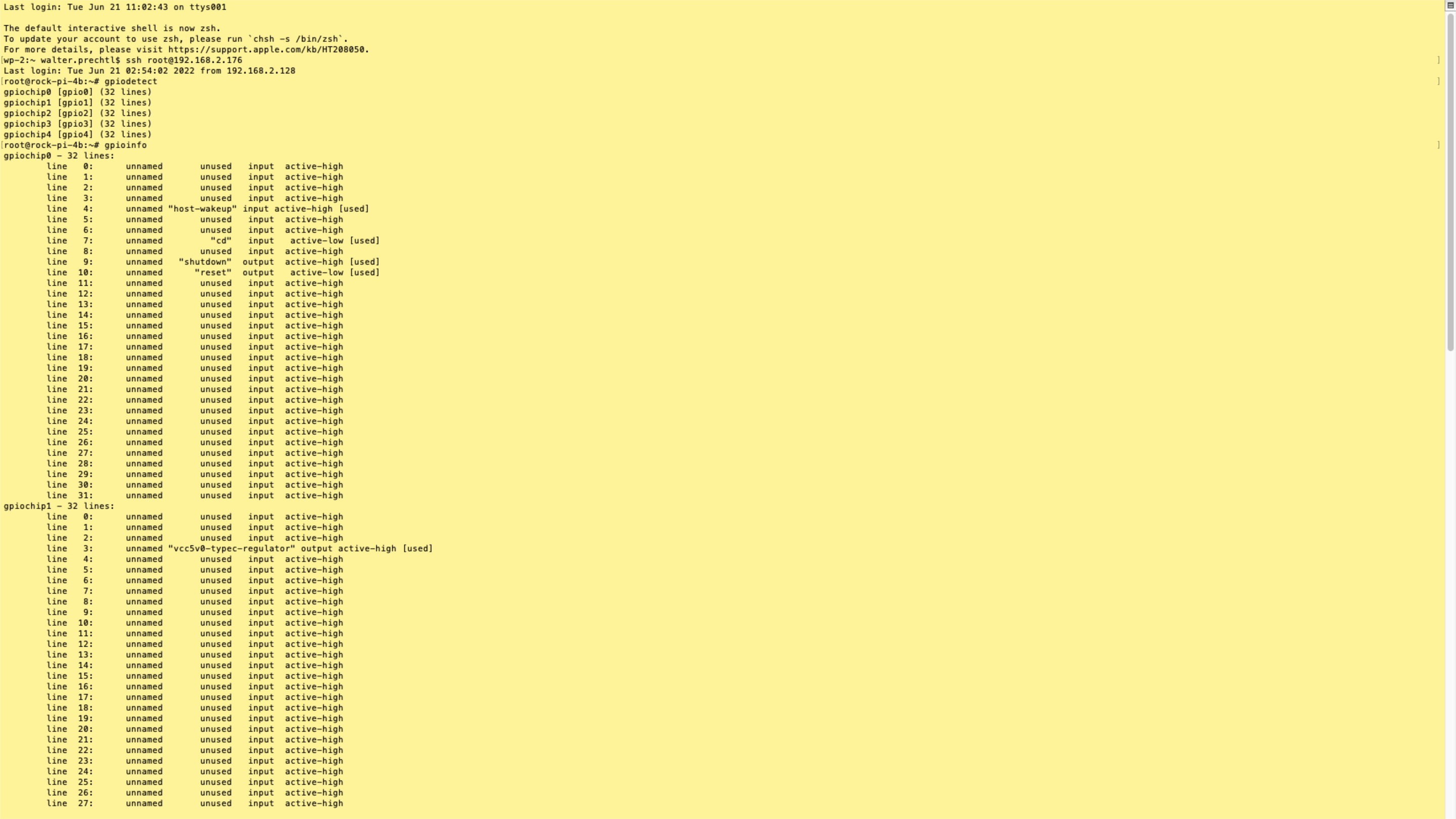

The output should look like this:

gpiochip0 - 32 lines:
    line   0:      unnamed       unused   input  active-high
    ...
    line   4:      unnamed "host-wakeup" input active-high [used]
    line   5:      unnamed       unused   input  active-high
    line   6:      unnamed       unused   input  active-high
    line   7:      unnamed         "cd"   input   active-low [used]
    line   8:      unnamed       unused   input  active-high
    line   9:      unnamed   "shutdown"  output  active-high [used]
    line  10:      unnamed      "reset"  output   active-low [used]
    ...
gpiochip1 - 32 lines:
    line   0:      unnamed       unused   input  active-high
    ...
    line  31:      unnamed       unused   input  active-high
gpiochip2 - 32 lines:
    line   0:      unnamed       unused   input  active-high
    ...
    line  31:      unnamed       unused   input  active-high
gpiochip3 - 32 lines:
    line   0:      unnamed       unused   input  active-high
    ...
    line  31:      unnamed       unused   input  active-high
gpiochip4 - 32 lines:
    line   0:      unnamed       unused   input  active-high
    ...
    line  29:   "GPIO4_D5"       unused   input  active-high

Set one GPIO line

To set GPIO line 29 on gpiochip4 to output and high, use the following command:

gpioset gpiochip4 29=1
